Buoyancy compensator

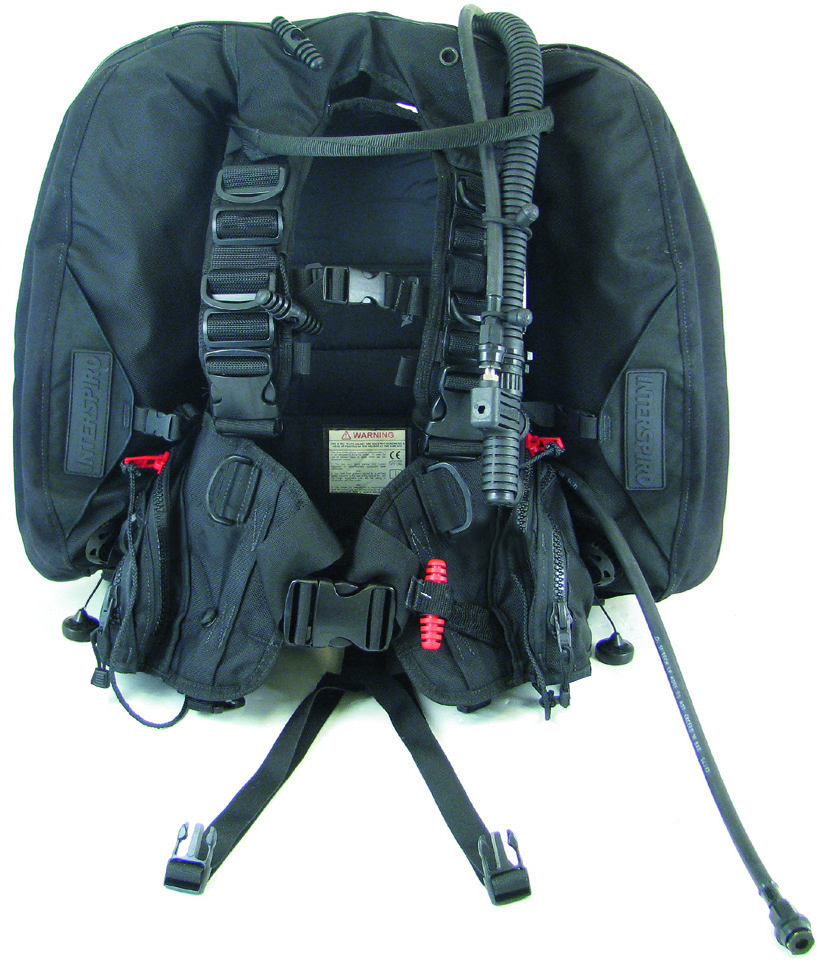

Buoyancy compensator, front.
1 Release handle for disengagement, diving supervisor |
10 Buoyancy gas hose |
2 D-ring (6) |
11 Carrying handle |
3 Release handle for disengagement, diver |
12 Rubber loop with knob |
4 Chest strap |
13 Outer wrap for bladder |
5 Fixing buckle (2) |
14 Inflator with inflator hose |
6 Weight pocket (2, red pull tab) |
15 Dumping handle |
7 Tool pouch (2, black pull tab) |
16 Drain valve (2) |
8 Waist buckle |
17 Suit gas hose |
9 Crotch strap |

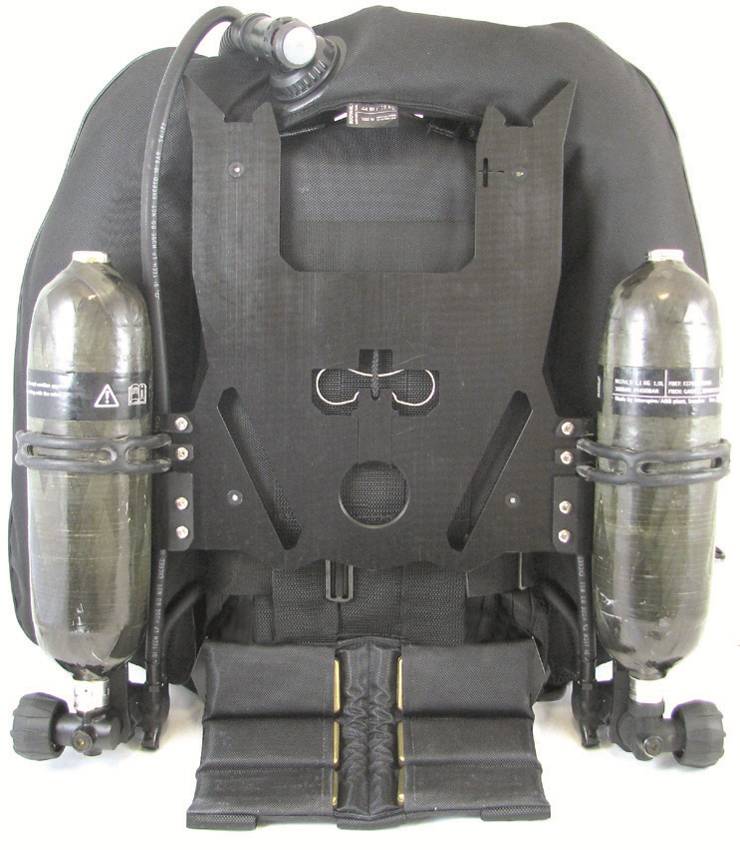

Buoyancy compensator, rear.
1 Overpressure valve, inflator hose |
6 Bail-out gas cylinder (RH-valve) |
2 Hooking up diving apparatus |
7 Tension strap |
3 Buoyancy gas cylinder (LH-valve) |
8 Bail-out regulator with hoses |
4 Quick coupling for diving apparatus |
9 Buoyancy compensator weights |
5 Buoyancy regulator with hoses |
The buoyancy compensator combines a balancing function through the back positioned buoyancy and weights for the buoyancy compensation function.
The buoyancy compensator is detachable from the IS-MIX which simplifies the handling of the diving equipment when transporting. The diver can be transported to the dive site with the IS-MIX removed. The buoyancy compensator avoids lying at the bottom of the boat and the risk being damaged.
The buoyancy compensator has a great adjustment range to suit most divers. The size is adjusted primarily by using the existing adjustment range in the shoulder and waist straps. If you need a greater adjustment range, the shoulder straps can be further adjusted by changing the basic length of these.
