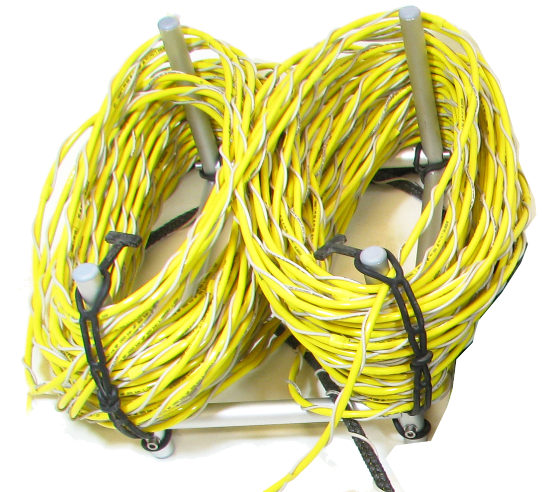

DPX diving hose
1 DPX diving hose |
5 Bail-out quick coupling (to Bail-out regulator) |
2 Winding frame |
6 PX+ regulator |
3 PX+ quick coupling (to IS-MIX pressure gauge) |

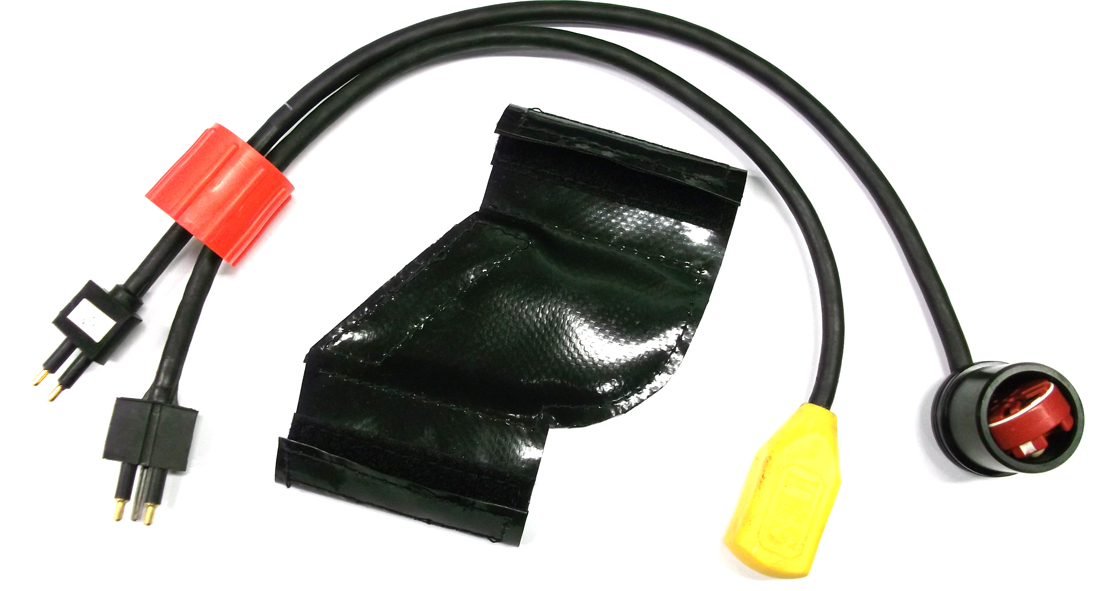

7 Microphone plug |
4 Carabiner hook |
8 Microphone and speaker |
DPX diving hose.

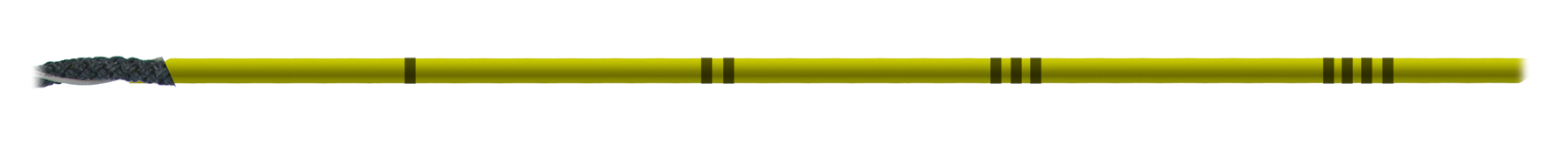

The diving hose can be delivered with markings, for example every 10 meters up to 40 m on the diver side, in order to have a visual indication of how much diving hose is fed to the diver.
Diving hose inlet connection

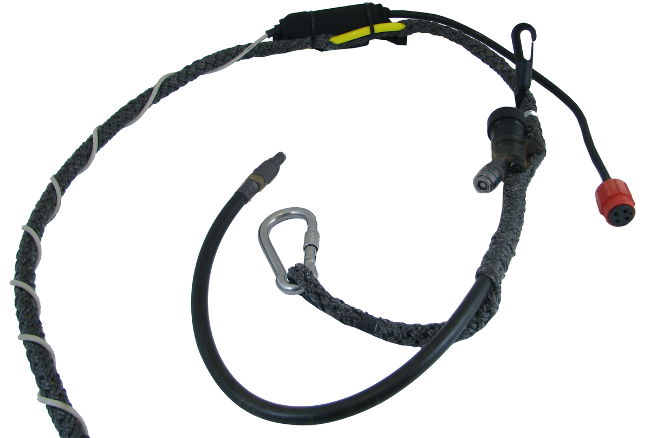

The diving hose is also a life line, with the possibility to carry a communication line. The hose with its strain reliefs, used as a life line, can withstand a force of 9000 N.

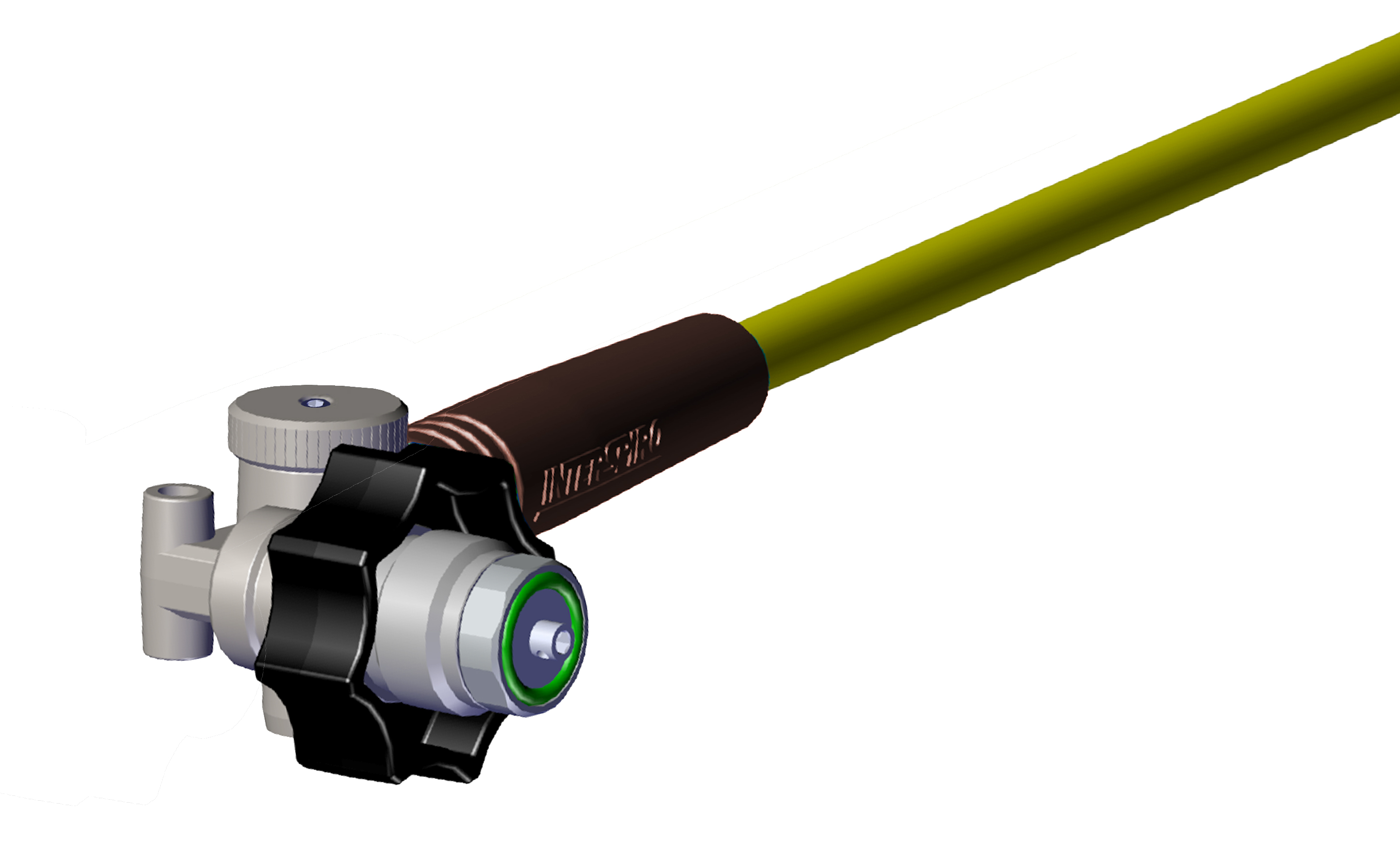

The other end of the diving hose is attached to the DPX surface unit gas outlet with a coupling equipped with hand wheel that is tightened by hand. The pressure in the diving hose is either 25 bar (Deco gas, RED side) or 75 bar (Deep gas, BLUE side).
Diving hose inlet connection
