Replacing the upper handle and O-ring
- Remove defective handle, 88 044-951, if applicable by first pushing it in and removing the O-ring, 88 519-951, and bending back the folded part before the handle is pulled out.
- Thread the new handle through the attachment.
- Fit the O-ring on the end of the handle as shown in the figure.

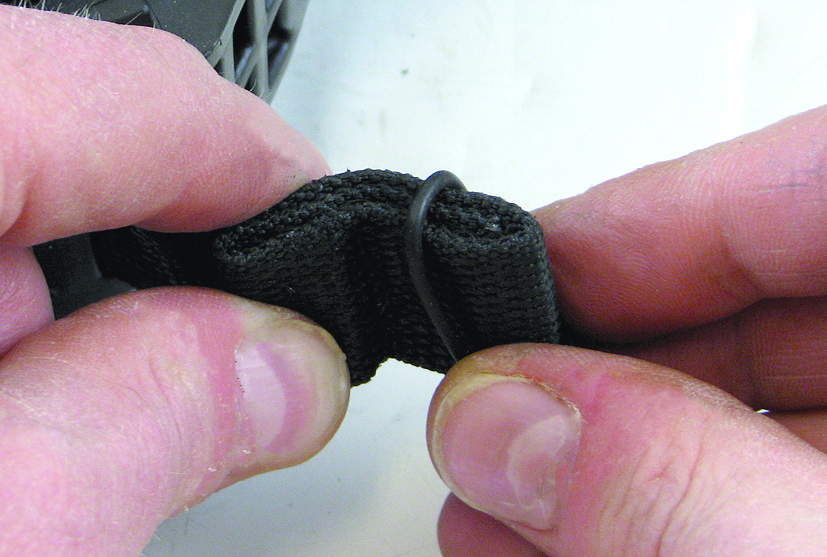

O-ring is threaded on the end.
- Fold the end and pull the handle in place.

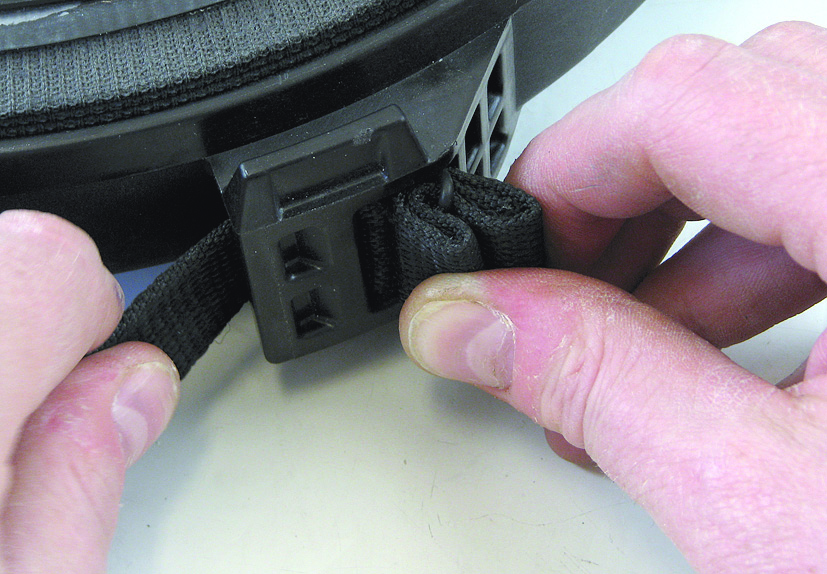

Correct installation of handle.
