Bail-out situations
Bail-out situations

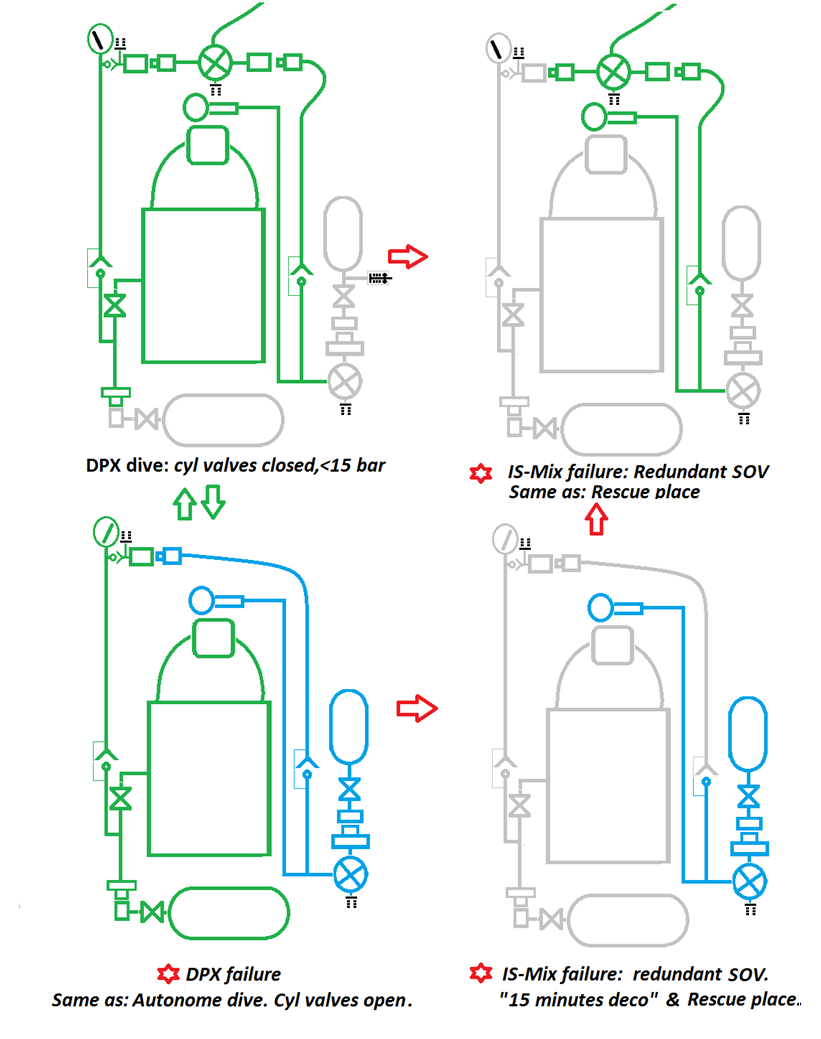

The following schematics show the redundancy when diving with the DPX.
A - Normal diving with DPX
B- IS-MIX failure: Switching over to bail-out breathing system with DPX surface gas supply.
C- DPX failure: Disconnecting DPX and opening IS-MIX gas cylinder and bail-out gas cylinder
D- IS-MIX failure (without DPX): Switching over to bail-out breathing system.
